125 kHz RFID Antenna 42x18mm: IND125-4218 (IND125-3)
IND125-4218, previously known as IND125-3, is a winded coil wire for use with Sonmicro 125 kHz RFID modules.
With a nominal inductance value of 860uH ±2% and internal resistance of 10ohm ±10%, the IND125-4218 is optimally designed for diverse 125 kHz RFID applications. Its smaller dimensions, measuring 42x18mm with a slim height of 3.3 mm, and thickness of 2.0 mm ensure seamless integration without compromising reading range, making it ideal for space-constrained installations.

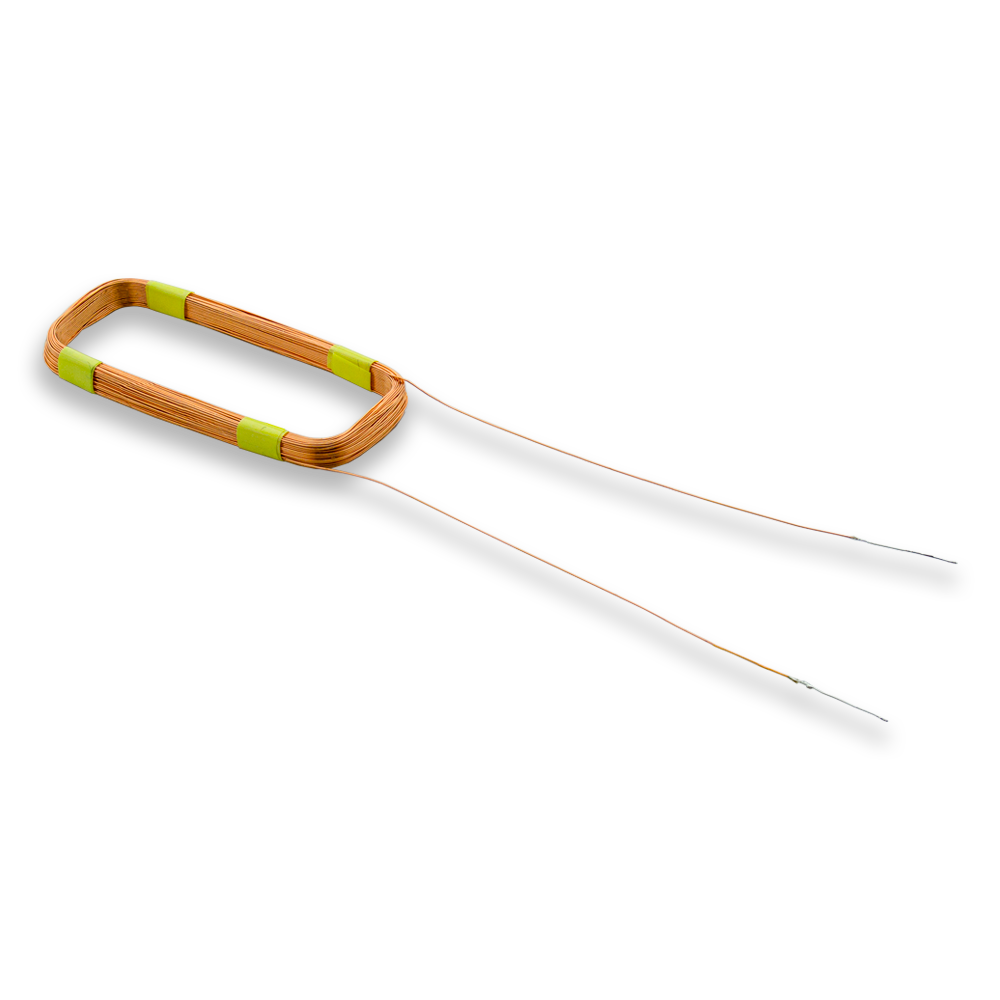

Additionally, the coil wire extends from both ends of the wound coil, with each end featuring a 6cm wire length and a 1cm tinned lead for soldering, facilitating easy connectivity and installation.
Connector Option:

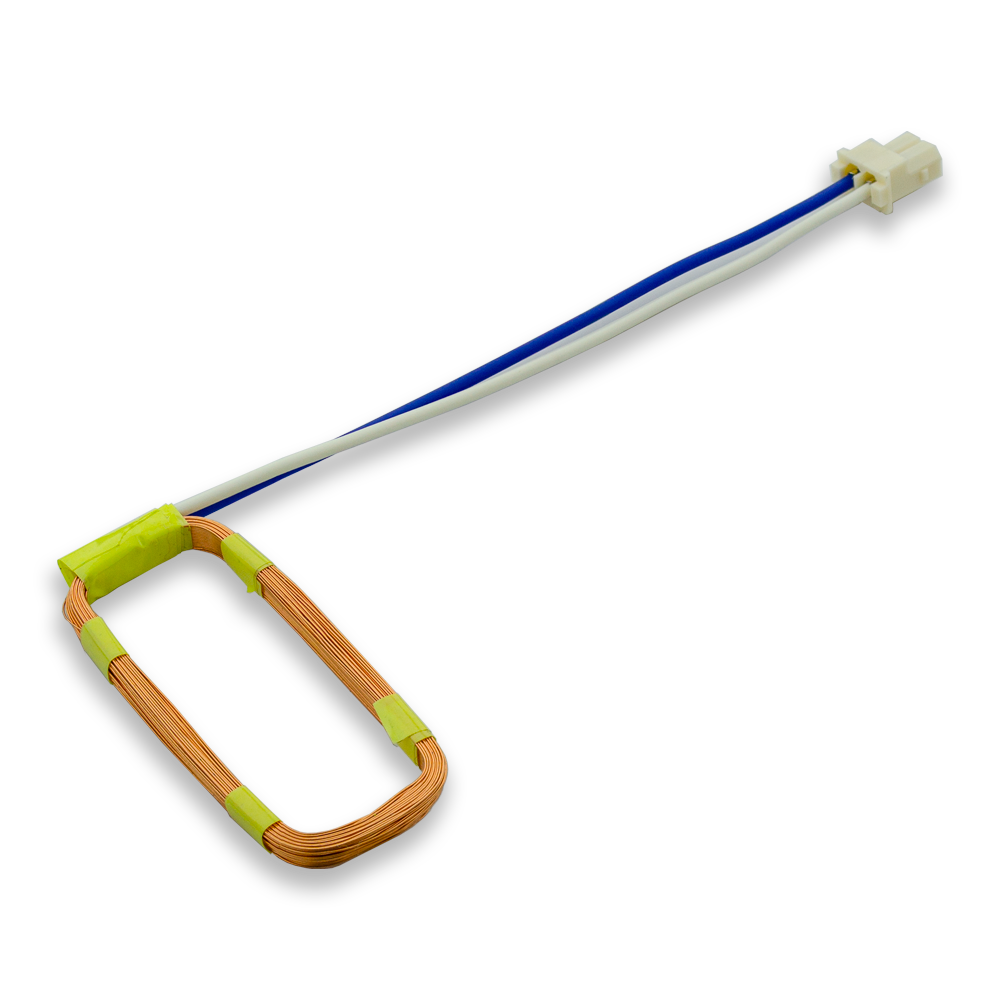

Optionally, this antenna comes with an approximately 8cm cable featuring a connector equivalent to the Molex Mini-Spox Series soldered to the antenna. The connector is compatible with corresponding mate parts (2.50mm) or standard pin headers with 2.54mm pin spacing.Customization Options
We offer customization services for the winded coil wire antenna to meet specific project requirements. Whether you need a different connector, wire length, or coil dimensions, we can tailor the antenna to your needs. Contact us to discuss your project requirements.
